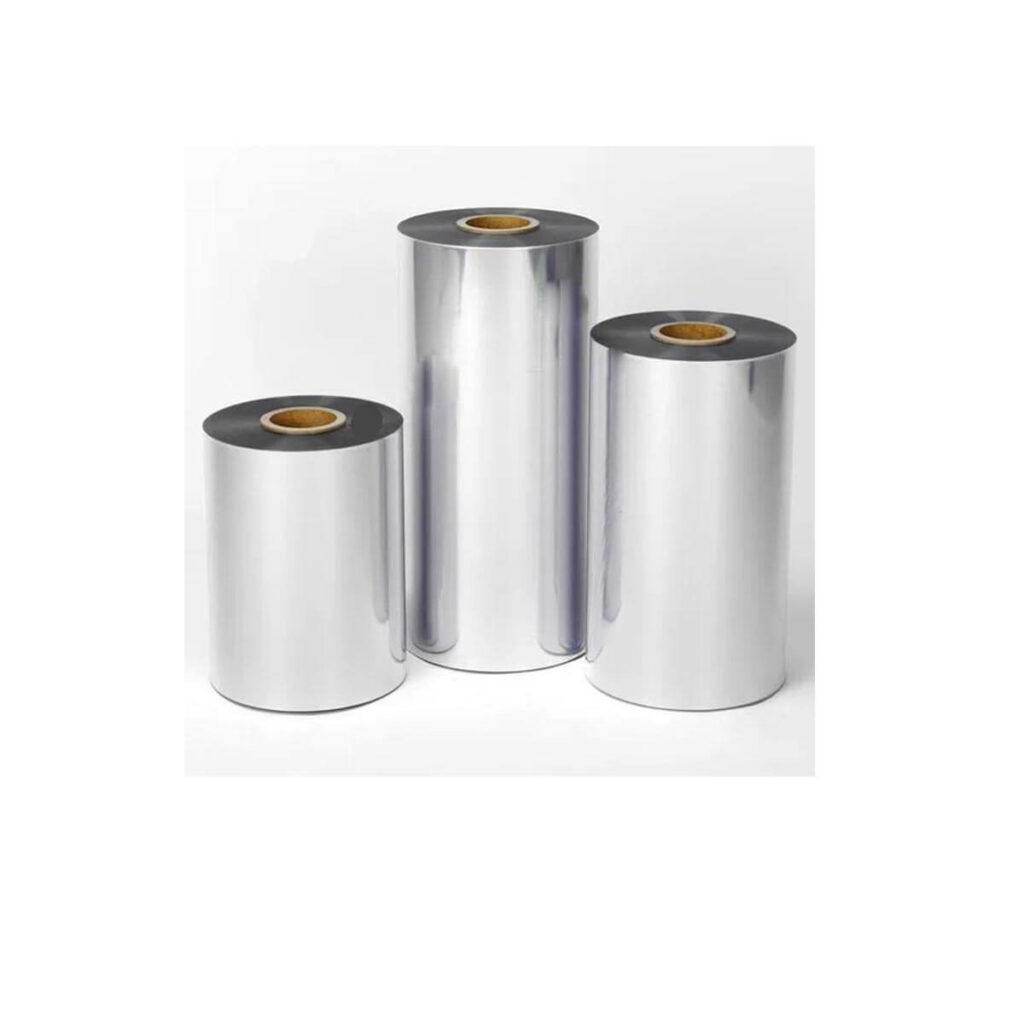

PVC Film
High-quality polyvinyl chloride (PVC) film engineered for pharmaceutical packaging applications. Our PVC Film offers excellent thermoforming properties, clarity, and chemical resistance, making it an essential component in blister packaging systems and various pharmaceutical applications.
Key Features & Benefits
Explore the versatile features that make our PVC Film the ideal choice for pharmaceutical blister packaging.
Excellent Thermoforming
Superior thermoforming characteristics enable deep draws and complex shapes for various blister configurations.
Chemical Resistance
Excellent chemical resistance provides protection against pharmaceutical ingredients and environmental factors.
Optical Clarity
Crystal clear transparency allows for easy product identification and visual inspection of contents.
Processing Versatility
Compatible with various processing methods including thermoforming, printing, and lamination processes.
FDA Compliant
Manufactured to meet FDA requirements for food contact and pharmaceutical packaging applications.
Cost-Effective
Economical solution providing reliable performance while maintaining competitive costs for high-volume applications.
Technical Specifications
Comprehensive technical specifications for our pharmaceutical-grade PVC Film products.
| Property | Specification | Test Method |
|---|---|---|
| Thickness Range | 150-300 μm | ASTM D374 |
| PVC Grade | Medical/Pharmaceutical Grade | ASTM D1755 |
| Density | 1.35-1.45 g/cm³ | ASTM D792 |
| Tensile Strength | ≥ 35 N/mm² | ASTM D882 |
| Elongation at Break | 150-300% | ASTM D882 |
| Light Transmission | ≥ 90% (Clear grade) | ASTM D1003 |
| Haze | ≤ 3% (Clear grade) | ASTM D1003 |
| Thermoforming Temperature | 140-180°C | Internal method |
| Max Forming Depth | 15-20 mm | ASTM D5342 |
| Available Widths | 200-800 mm | Custom widths available |
Product Grades Available
Choose from our range of specialized PVC Film grades designed for specific pharmaceutical packaging needs.
Clear PVC
Crystal clear film for applications requiring maximum product visibility and inspection capability.
- Maximum transparency
- Low haze levels
- Excellent clarity retention
- UV stabilized options
Colored PVC
Colored formulations for light-sensitive products or specific branding requirements.
- Amber for UV protection
- Custom color matching
- Consistent color reproduction
- Light barrier properties
High-Barrier PVC
Enhanced barrier properties for moisture-sensitive pharmaceutical products requiring extra protection.
- Improved moisture barrier
- Enhanced oxygen resistance
- Extended shelf life
- Specialty applications
Applications
Versatile applications for PVC Film across pharmaceutical and healthcare packaging sectors.
Blister Pack Forming Films
Tablet Blister Packaging
Capsule Cavity Formation
Medical Device Packaging
Thermoformed Trays
Unit Dose Packaging
Multi-dose Blisters
Child-Resistant Packaging
Over-the-Counter Products
Prescription Medications
Veterinary Pharmaceuticals
Nutraceutical Packaging
Clinical Trial Packaging
Export Market Applications
Sample Packaging
Compliance Packaging
Processing Guidelines
Optimal processing parameters and guidelines for achieving best results with our PVC Film.
Thermoforming Parameters
- Heating Temperature:140-180°C depending on thickness
- Forming Pressure:2-6 bar depending on depth
- Cooling Time:5-15 seconds based on part geometry
- Draw Ratio:Maximum 3:1 for optimal results
Storage & Handling
- Storage Temperature:5-25°C in dry conditions
- Relative Humidity:Below 60% to prevent moisture absorption
- UV Protection:Store away from direct sunlight
- Handling:Use clean, static-free equipment
Quality Assurance & Testing
Raw Material Control
Stringent incoming inspection of PVC resins and additives ensuring consistent quality and pharmaceutical compliance.
Process Monitoring
Real-time monitoring of extrusion parameters including temperature, pressure, and line speed for consistent film properties.
Performance Testing
Comprehensive testing program covering mechanical properties, optical characteristics, and thermoforming performance.
Regulatory Compliance
Full compliance with FDA, USP Class VI, and other international standards for pharmaceutical packaging materials.
Reliable Thermoforming Solutions
Partner with us for consistent, high-quality PVC Film solutions that meet your pharmaceutical packaging requirements and processing needs.
